BESS Energy
Bergstrom Energy Storage Thermal - Intelligent Cooling
At Bergstrom we have developed a range of HVAC and liquid cooled chillers for energy storage systems (BESS).
Custom engineered solutions driven by your timeline.
We have 75 years of experience in complete systems and components.

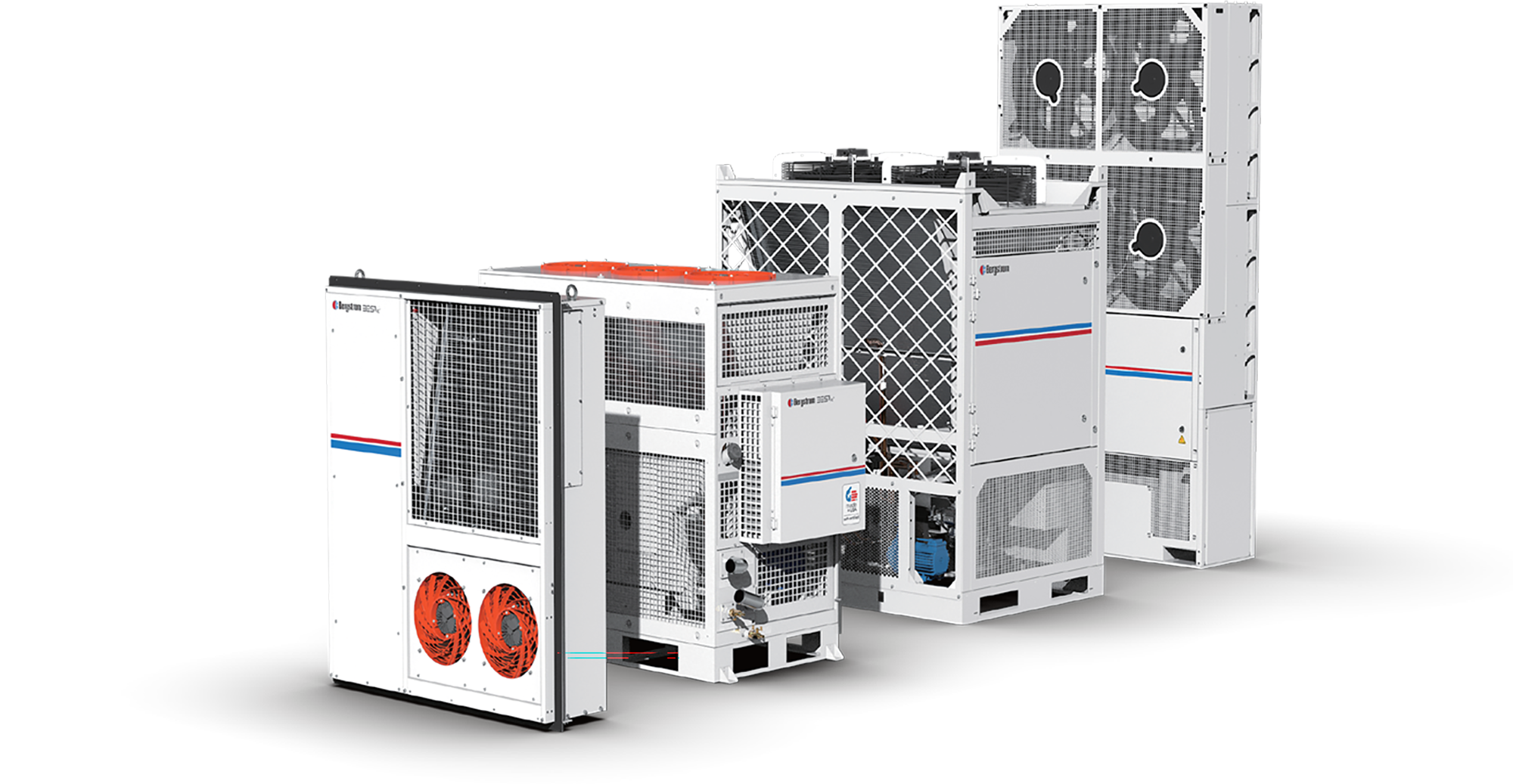

Liquid Cooled Chillers
Easy installation
High cooling capacity
High efficiency
Precise temperature control
Multi-position mounting
Environmentally friendly
Products: Liquid Cooling Units
| Product name: | L075JE |
| Cooling capacity: | 7.5 kW |
| Heating capacity: | 2 kW |
| Refrigerant: | Glycol solution |
| Input power: | 1PH / 50 – 60HZ / 220V |
| Communication: | Modbus Protocol with RS485 Signal Level |
| Refrigerant gas: | R32 |
| Refrigerant charge: | 1.30 kg |
| Product weight: | 148 kg / 326 lb |
| Product name: | L10JE |
| Cooling capacity: | 10 kW |
| Heating capacity: | 2 kW (PTC) |
| Refrigerant: | Glycol solution |
| Input power: | 1PH / 50 – 60HZ / 220V |
| Communication: | Modbus Protocol with RS485 Signal Level |
| Refrigerant gas: | R32 |
| Refrigerant charge: | 1.30 kg |
| Product weight: | 148 kg / 326 lb |

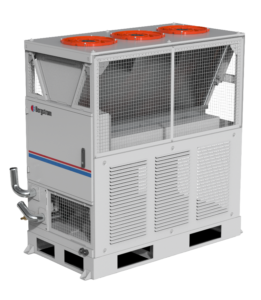

| Product name: | L15TE |
| Cooling capacity: | 15 kW |
| Heating capacity: | 8 kW (PTC) |
| Coolant: | Glycol solution |
| Input power: | 3PH / 50HZ / 380V |
| Communication: | RS485 |
| Refrigerant gas: | R32 |
| Refrigerant charge: | 3.50 kg |
| Product weight: | 250 kg / 551 lb |
| Product name: | L55KF |
| Cooling capacity: | 55 kW |
| Heating capacity: | 18 kW (PTC) |
| Coolant: | Glycol solution |
| Input power: | 3PH / 50Hz / 380V |
| Communication: | RS485 |
| Refrigerant gas: | R32 |
| Refrigerant charge: | 5.80 Kg |
| Product weight: | 500 kg / 1,102 lb |
| Product name: | L60KE |
| Cooling capacity: | 60 kW |
| Heating capacity: | 24 kW (PTC) |
| Coolant: | GLYCOL SOLUTION |
| Input power: | 3PH / 50-60HZ / 400-480V |
| Communication: | RS485 / CAN |
| Refrigerant gas: | R32 |
| Refrigerant charge: | 5.80 kg |
| Product weight: | 460 kg / 1,016 lbs |

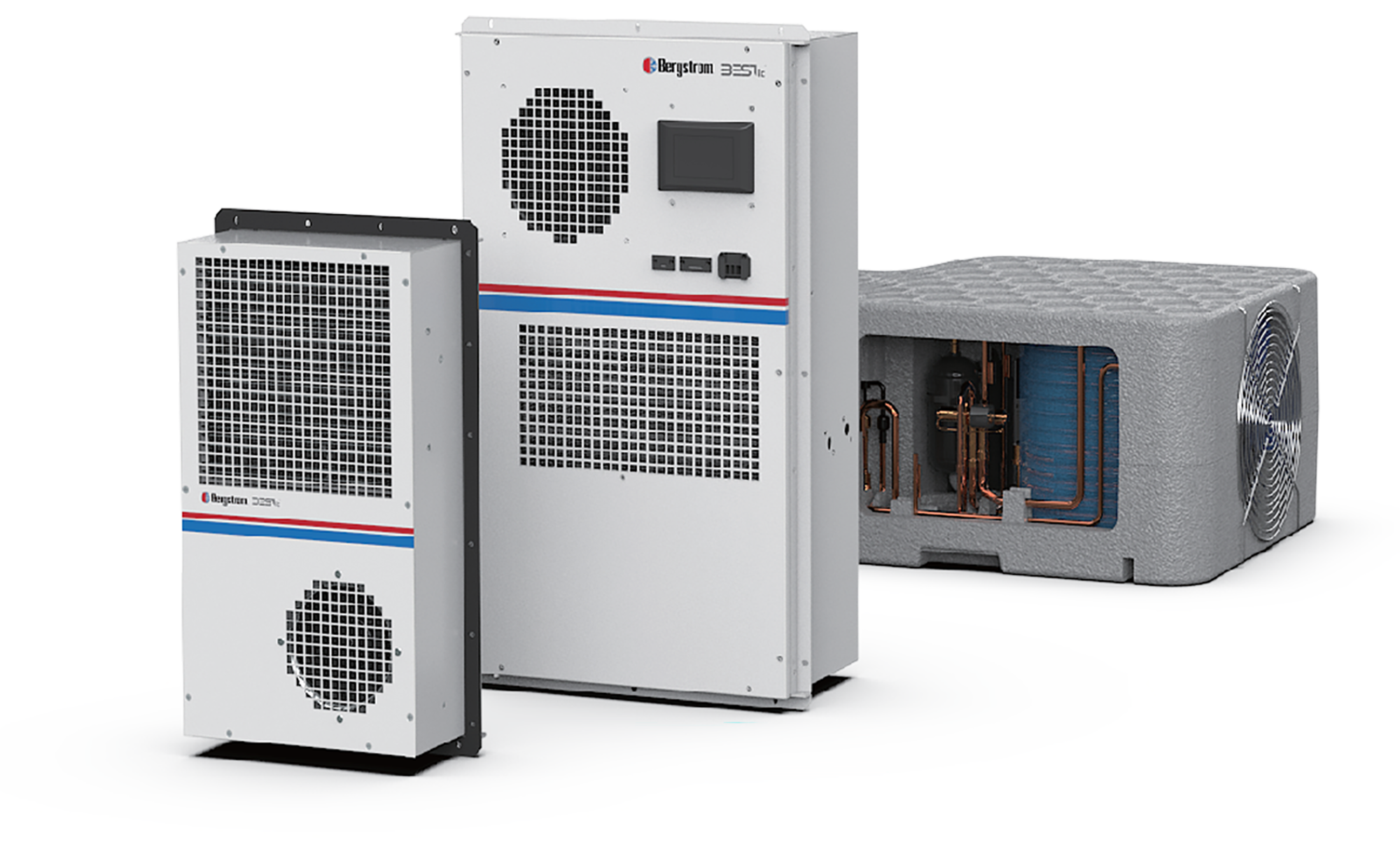

HVAC Units
High cooling capacity
Precise temperature control
Easy installation
High efficiency
Environmentally friendly
Multi-position mounting
Products: Air Cooling Units
| Product name: | A006JE |
| Cooling capacity: | 600 W |
| Heating capacity: | – |
| Electrical heating capacity: : | 500 W (PTC) |
| Input power: | 1PH / 50 – 60 HZ / 230V |
| Communication: | RS485 |
| Refrigerant gas: | R513A |
| Refrigerant charge: | 210 G |
| Product weight: | 23 kg / 51 lb |
| Product name: | A020JE |
| Cooling capacity: | 2000 W |
| Heating capacity: | – |
| Electrical heating capacity: : | 800 W (PTC) |
| Input power: | 1PH / 50 – 60 HZ / 200-240V |
| Communication: | RS485 |
| Refrigerant gas: | R513A |
| Refrigerant charge: | 520 G |
| Product weight: | 43 kg / 95 lb |
| Product name: | A04KF |
| Cooling capacity: | 4 kW |
| Heating capacity: | 1.5 kW (PTC) |
| Coolant: | – |
| Input power: | 3 PH / 50 – 60 Hz / 380 V, 480 V |
| Communication: | RS485 & Modbus |
| Refrigerant gas: | R513 |
| Refrigerant charge: | – |
| Product weight: | 80 kg / 175 lb |
| Product name: | A05GD |
| Cooling capacity: | 5 kW |
| Heating capacity: | 5 kW |
| Electric heating cap: | 1.5 kW (PTC) |
| Input power: | 1 PH / 50-60 Hz / 220 V |
| Communication: | RS485 & Modbus |
| Refrigerant gas: | R32 |
| Refrigerant charge: | 820 g |
| Product weight: | 34 kg / 75 lb |
| Product Model: | A32KE |
| Cooling capacity: | 32 kW |
| Heating capacity: | 15 kW |
| Electric heating capacity: | – |
| Input power: | 3 PH / 50-60 Hz / 380-420 V |
| Communication: | RS485 & Modbus |
| Refrigerant: | R410A / R513A optional |
| Refrigerant charge: | – |
| Product weight: | 865 kg / 1,907 lb |
HIGH EFFICIENCY
Fan + refrigerant pump + variable speed DC compressor
CERTIFIED QUALITY
Industrial quality design, UL certified
EASY INSTALLATION
Integrated system facilitates installation and maintenance
THERMAL MANAGEMENT
Precise temperature and air flow control
MULTIPLE COOLING SOLUTIONS
VERTICAL INTEGRATION
We design and manufacture key components in-house according to industry standards, ensuring first-class quality.
QUALITY STANDARDS
Our modern facilities and validation equipment ensure that our products meet the stringent requirements of our customers.
COMPREHENSIVE CONTROL TESTING
We simulate various weather conditions, including temperature, humidity, and solar radiation. This allows us to have precise operational control.
QUALITY AND INTEGRAL CONTROL
Commitment to excellence in design, manufacturing, and comprehensive testing to ensure first-class products
ADVANCED HARDWARE CONTROL
DC Converter
Brushless DC motor
Intuitive CAN, LIN and PWM interfaces
INTELLIGENT CONTROL ALGORITHM
Integrated ECO mode
Precise temperature control
Multi-evaporator control systems
SERVICE- ORIENTED
Access to field data
Real-time diagnostics
Wireless programming
Lifetime monitoring of core components
